Sectors: Ventilation Applications: Fix Issues: ASTRA destratifiers increase the efficiency of the heating system by preventing the accumulation of warm air in the upper parts of buildings. The fan redirects heat downwards, thus reducing heat loss and preventing heat loss to the outside.
The result is rapid heating of the building, resulting in energy savings due to better overall system efficiency.
Select one of the available models| SKU Variant Code | Price | Offer price | Products | Name | Delivery Time | Table Technical Data | Arm diameter | Arm type | Arm length | Bench type | Length MT | Length mm | Diameter | Cartridge type | Filter surface area | Q max | Suction hoses | ATEX | Cartridges / Filters | Motor | Watts | Torrino | Fan | Fan Type | Engine power | Measure cm | Measurement mm | Color | Cable length | Max. pressure | Thickness | Inside diameter x outside diameter mm | Efficiency | Packaging | Weight | eff. % | RPM | Max. amperes | Start-up | Case dim | Size table | Active variant | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTRA5500000000 | 998 | ASTRA550 Destratifier | 15 | 550 | 1 | 998,00 € |
|
|||||||||||||||||||||||||||||||||||||
| ASTRA7000000000 | 1259 | ASTRA700 Destratifier | 15 | 700 | 1 | 1.259,00 € |
|
|||||||||||||||||||||||||||||||||||||
| ASTRA8000000000 | 1760 | ASTRA800 Destratifier | 15 | 800 | 1 | 1.760,00 € |
|

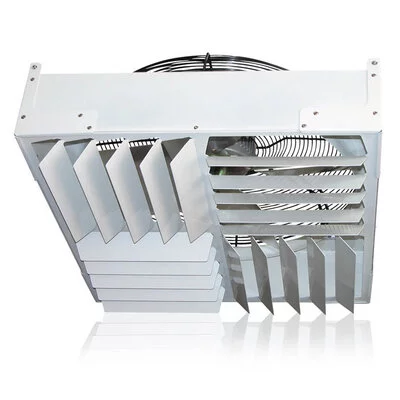

Each ASTRA destratifier consists of a single-phase helical fan with adjustable revolutions, mounted on a high-efficiency conveyor and fins for adjusting the outgoing air flow.
The following accessories are available on request
Operatingconditions :
For environments where conditions may be different, a good rule of thumb for choosing the model and number of units is to calculate 4-5 recirculations per hour: ENVIRONMENTAL m3 x 5 / FLOW m3/h = No. DESTRATIFIERS
NB. Minimum installation height: 4mt
| Code | Nominal flow rate (m3 / h) | Noise (Db (A)) | Weight (kg) | Air flow rate (lt / min) | Spins (RPM) | Voltage (V) |
|---|---|---|---|---|---|---|
| - ASTRA5500000000 | 3500 | 50 | 14 | Notice: Array to string conversion in /var/www/sites/secureair.it/site/wp-content/themes/iimage-boiler/woocommerce/shop-prodotto.php on line 611 Array |
900 | 230 |
| - ASTRA7000000000 | 7300 | 51 | 24 | Notice: Array to string conversion in /var/www/sites/secureair.it/site/wp-content/themes/iimage-boiler/woocommerce/shop-prodotto.php on line 611 Array |
900 | 230 |
| - ASTRA8000000000 | 11300 | 52 | 36 | Notice: Array to string conversion in /var/www/sites/secureair.it/site/wp-content/themes/iimage-boiler/woocommerce/shop-prodotto.php on line 611 Array |
900 | 230 |
| Code | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| - ASTRA5500000000 | 550 | 150 | 315 |
| - ASTRA7000000000 | 700 | 150 | 345 |
| - ASTRA8000000000 | 800 | 200 | 385 |
| Name | Code | Price | ||
|---|---|---|---|---|
|
Speed regulator for ASTRA destratifiers | REGVELASTRA0000 |
From:
205,00 €
|
|
Technical sheet (SecureAir_SP_ASTRA0000000000_2024_11_07_en.pdf)
