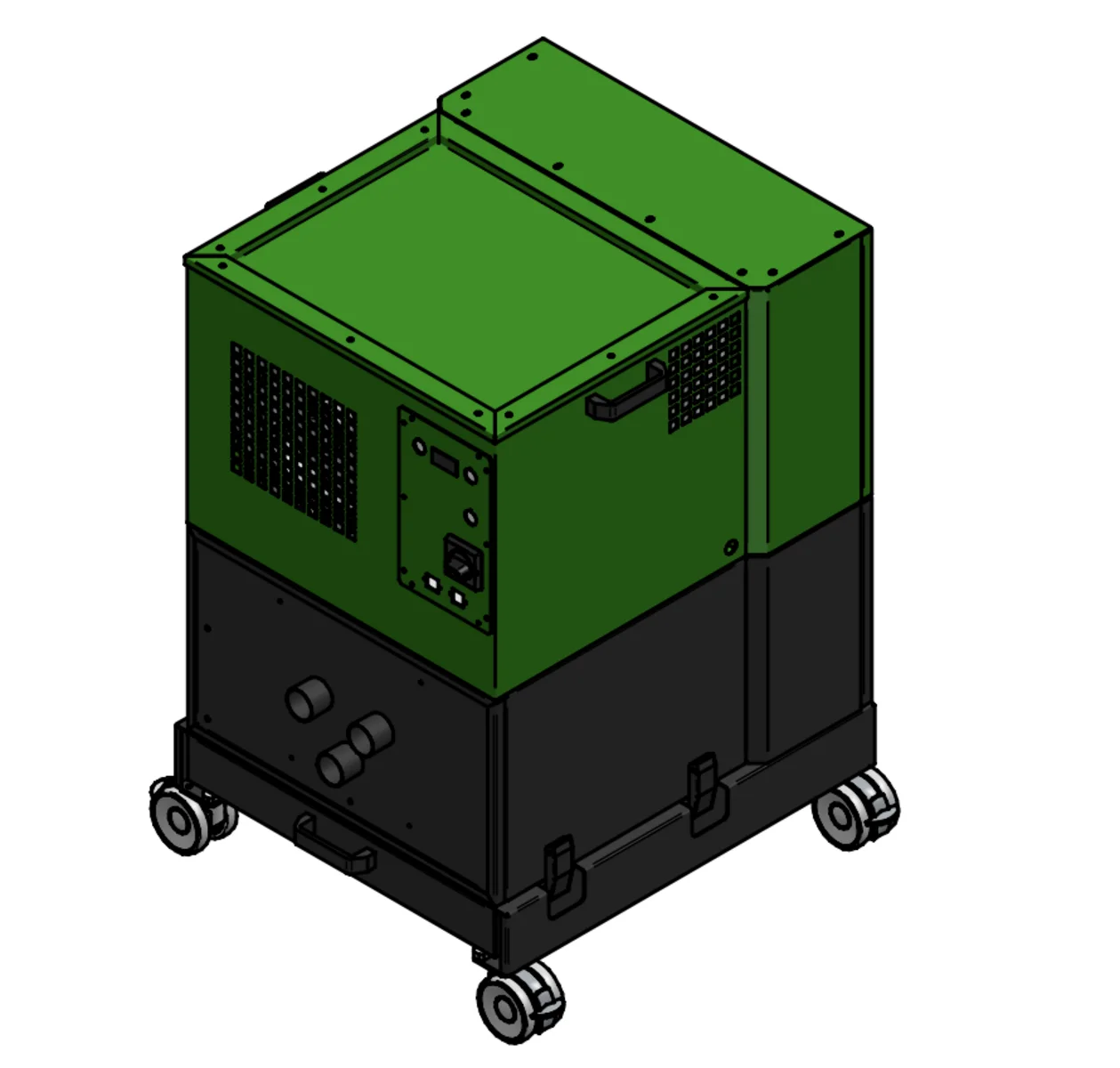

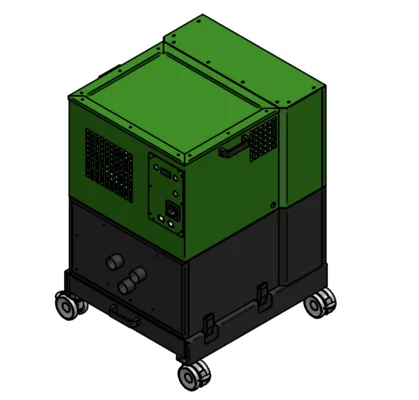

High pressure welding fume extractor VXH22

The VXH22 welding fume purifier is designed for optimal high-pressure suction of fumes through two welding suction flashlights at the same time or from other applications requiring small-section piping.

Technical features

• suction from up to 2 flashlights at the same time

• Power 2200Watt 400/3/50 three-phase

• Max flow rate 240mc/h

• Nominal depression 250 mBar

• Sound level 75db(A) at 1.5m in free field

• Weight 80kg

Filter section

• stage 1: pre-chamber stilling for abatement of larger particle size

• stage 2: eff 99% polyester cartridge filtration

• stage 3: HEPA panel H13 99.9%

• optional: activated carbon panel for deodorization

The high-pressure welding fume extractor with integrated filtration (99.9% 0.3micron micrometer abatement) to be connected to max. no. 2 SAT line suction flashlights, is specifically for industrial use in continuous operation (100% duty cycle) thanks to the robust aluminum blower/turbine with a three-phase motor of primary brand. The aspirator is designed for operation in manual or automatic mode ; in the latter, the aspirator is activated and, by means of a timer, deactivated in synchrony with the welding cycle.

• The maximum distance, length of the hose, between the suction point and the fume production point is 20-25m.

• Ideal solution for one or two welding stations and re introduction of fumes into the environment (where permitted) or directly with expulsion to the outside (with accessory).

• Automatic activation during arc initiation makes it fully automatic without loss of productivity.

Construction

• sturdy powder-coated steel frame and panels

• smoke inlet chamber and cartridge housing made of 20/10 sheet metal sealed

• electrical panel for control and protection
