HVLS APBG5 industrial 5-blade ceiling fan

cod. SMHS00000000000   Shipping in: Days
Sectors: Ventilation
Applications:
Issues:

APBG5 5-Blade Industrial Ceiling Fan

  • 5 Blades Extruded Aluminum Anodized Against Corrosion Constant Section
  • Increased Air Distribution Cone
  • Three-phase Brushless EC motor equipped with Integrated Electronic System and EMC filters
  • 3 Sizes with Diameters 3.6m / 5.4m / 7.3m
  • Air Flow Rates up to 438,818 m3/h (AMCA230-99)
  • 110 RPM Max
  • Pot. Max Ass. 0.75 kW
Select one of the available models
SKU Variant Code Price Offer price Products Name Delivery Time Table Technical Data Arm diameter Arm type Arm length Bench type Length MT Length mm Diameter Cartridge type Filter surface area Q max Suction hoses ATEX Cartridges / Filters Motor Watts Torrino Fan Fan Type Engine power Measure cm Measurement mm Color Cable length Max. pressure Thickness Inside diameter x outside diameter mm Efficiency Packaging Weight eff. % RPM Max. amperes Start-up Case dim Size table Active variant Price
SMHS36000000000 5106 HVLS APBG5-36 industrial 5-blade ceiling fan Three-phase 1 5.106,00 €
SMHS54000000000 5730 HVLS APBG5-54 industrial 5-blade ceiling fan Three-phase 1 5.730,00 €
SMHS73000000000 6553 HVLS APBG5-73 industrial ceiling fan with 5 blades Three-phase 1 6.553,00 €
* Delivery time: Delivery time is estimated and is understood as departure date from our warehouse.

Description

HVLS stands for HIGH FLOW LOW RPM in Italian

These are large-scale industrial ceiling fans whose unique technical features can greatly improve summer comfort and winter energy savings. They can move huge air flow rates (up to 540,000 cu m/h) and do so at low RPM (maximum 110 RPM) . They are an excellent alternative to coolers because they do not affect the ambient humidity level, while still creating a pleasant feeling in operators.

Available in three sizes: from 3,600 mm to 7,300 mm with air flow rates up to 440,000m3/h.

The complete SMHS fan comes with the corresponding Blade Kit + Motor Kit.

CONSTRUCTION

Upper structure to protect the motor made of painted steel.

The fan is equipped with:

- Safety cable set and tubular L = 800mm supplied.

- Blades made of aluminum EN AW 6063 T6 with anodized treatment against corrosion.

- Hub provided with safety ring.

- Aesthetic hub cover

- High efficiency three-phase brushless EC motors designed for HVLS fans, 380-440Vac/3ph/ 50/60Hz, IP55, equipped with integrated electronics and EMC filters. Suitable for continuous duty S1. Adjustable speed


FEATURES AND BENEFITS

  • Wide air distribution cone under the fan.
  • Absence of gears and aerodynamic design to ensure absolute silence.
  • Optimization of HVAC systems and reduction of CO2 emissions, consumption and energy costs.
  • Winter destratification achieved by bringing down the heat that stratifies at the top of the rooms, equalizing the temperature and avoiding further heating.
  • Summer comfort achieved by keeping the air moving continuously, eliminating hot-cold zones.
  • No routine maintenance required.
  • Steel structure to guarantee long life, strength and robustness.
  • Several systems provided to ensure maximum safety (reinforced main safety cable, additional stabilization cables, hub safety ring).
  • Hub cover to protect the motor from dust and for better design.
  • Simplified electrical connections.
  • Built-in EMC filters to prevent possible electromagnetic interference with other devices.
  • Operate in temperatures from 0°C to +50°C.
  • Units are tested in accordance with the latest AMCA standards to ensure maximum reliability of performance data.
  • Designed and manufactured in accordance with the Machinery Directive (MD), the Low Voltage Directive (LVD) and the Electromagnetic Compatibility Directive (EMC)

Technical data

Code Power (kW) Nominal flow rate (m3 / h) Weight (kg) Power supply (Hz) Motor Rotational speed (rpm)
- SMHS36000000000 0,57 163105 97 50/60 Three-phase 110
- SMHS54000000000 0,66 283089 123 50/60 Three-phase 65
- SMHS73000000000 0,75 438818 142 50/60 Three-phase 43

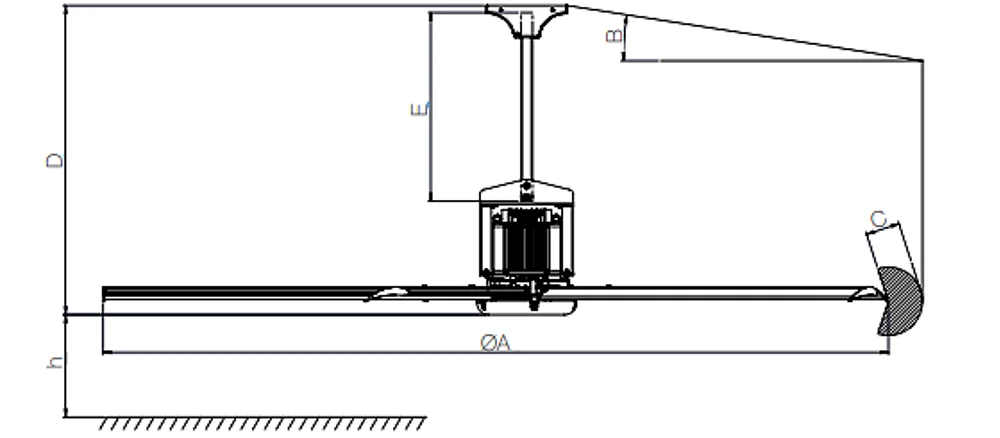

Dimensions

Code A (mm) B (mm) C (mm) D (mm) E (mm) h (mm)
- SMHS36000000000 3610 20 550 1315 800 2700
- SMHS54000000000 5410 20 650 1315 800 2700
- SMHS73000000000 7300 20 750 1315 800 2700

Accessories

  Name Code Price
3.5" touch control panel with color graphic display PNLCNTR35000000
From:
628,00 €
Potentiometer equipped with a bipolar ON/OFF switch POTINTBIP000000
From:
61,00 €
Control panel with anemometer and probe for temperature measurement PNCANEMSND00000
From:
504,00 €
Control panel with temperature probe included and humidity probe on request PNCSNDUMID00000
From:
827,00 €
IPE/HEA/HEB beam fastening kit KITIPEHEAHEB000
From:
127,00 €
Fixing kit for rectangular section beams KITRETTANGOL000
From:
232,00 €

photogallery

Documentation

SECUREAIR_SMHS_Manuale.pdf

Technical sheet (SecureAir_SP_SMHS00000000000_2024_11_07_en.pdf)
Highlight category
