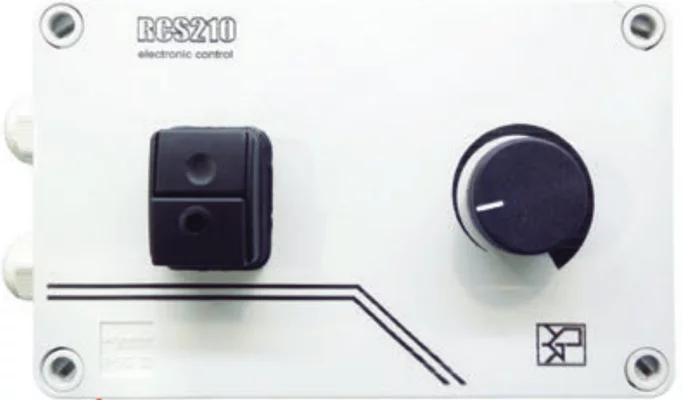

Speed controll ers are ideal for controlling single-phase motors of axial or centrifugal fans , single or double inlet or box fans.
Manual triac speed controll ers are ideal for the regulation of single-phase asynchronous motors (remember that the motors must conform to the regulation, check with the manufacturer).
The regulation is of the electronic phase-controlled triac type with a manual closed-loop triac with continuous adjustment via potentiometer.
Practical function: reduces speed when needed, decreasing flow rate and noise.
IP55 watertight box, easily wall-mounted.
Wiring diagram included.
Technical features
Note: All triac controllers can cause electrical hum in the motor at low speeds.
Code | Power (kW) | Current (A) |
---|---|---|
- REGVELMONORV300 | 0,3 | 1.5 |
- REGVELMONORV600 | 0,6 | 3 |
- REGVELMONORV900 | 0,9 | 5 |
- REGVELMONORV150 | 1,5 | 7.5 |
- REGVELMONORV250 | 2,5 | 12 |
Code | A (mm) | B (mm) | h (mm) |
---|---|---|---|
- REGVELMONORV300 | 110 | 110 | 50 |
- REGVELMONORV600 | 110 | 75 | 59 |
- REGVELMONORV900 | 135 | 74 | 73 |
- REGVELMONORV150 | 170 | 105 | 82 |
- REGVELMONORV250 | 170 | 105 | 82 |
