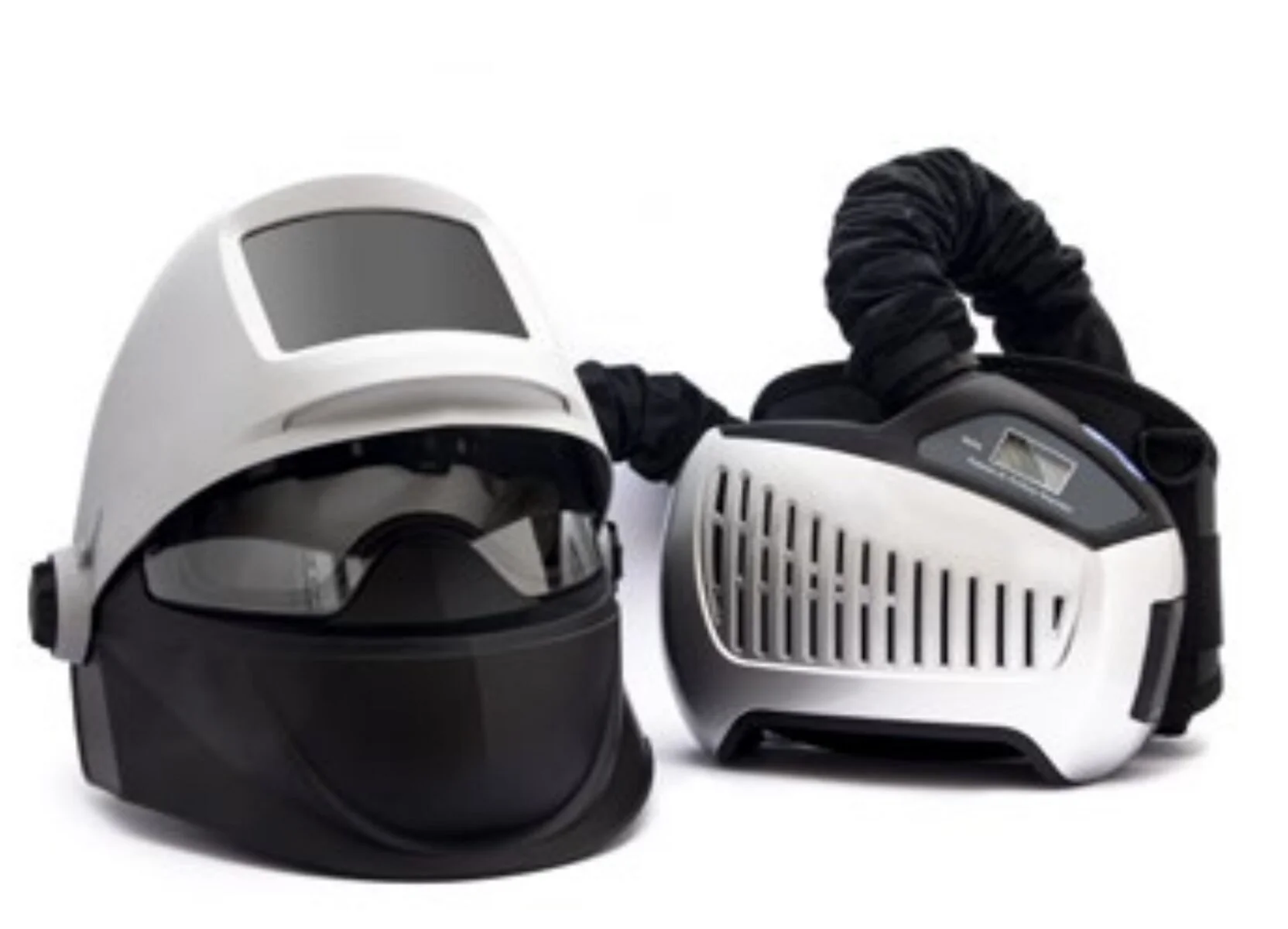

V9-22 self-darkening mask with ventilated respirator and filter

cod. MASKV9220000000   Shipping in: 7 Days
804,00
Sectors: Welding
Applications: Mobile
Issues: Fumes

Mask with class TH3 filter unit and 99.8% efficiency rating.

Request quotation for quantity and dedicated spare parts.

Select one of the available models
SKU Variant Code Price Offer price Products Name Delivery Time Table Technical Data Arm diameter Arm type Arm length Bench type Length MT Length mm Diameter Cartridge type Filter surface area Q max Suction hoses ATEX Cartridges / Filters Motor Watts Torrino Fan Fan Type Engine power Measure cm Measurement mm Color Cable length Max. pressure Thickness Inside diameter x outside diameter mm Efficiency Packaging Weight eff. % RPM Max. amperes Start-up Case dim Size table Active variant Price
* Delivery time: Delivery time is estimated and is understood as departure date from our warehouse.

Description

Provides respiratory and face protection for maximum safety and comfort while welding.

Portable and lightweight, it is ideal in all operating situations that do not allow protection with classic suction systems such as suction arms or wheeled purifiers.

  • The respirator has an electronic control that makes the air flow constantly stable and adjustable in three settings: 170, 200 and 230 l/min.
  • The unit where the air filter is housed has a liquid-crystal display that clearly indicates airflow level, battery status, and particle filter pollution level.
  • An opto-acoustic alarm alerts the operator if the filter is polluted and/or the battery is low.
  • The motorized fan is brushless and uses ball bearings that reduce noise and increase robustness and durability.
  • The respirator is equipped with a comfortable belt with two shoulder straps.
  • The battery (Li-Ion) has a battery life of at least 8 hours (at 170 l/min), recharges in about 3 hours and is guaranteed for more than 500 recharges.
  • The SPARX and STAWAR models vibrate to alert if the battery is low or the filter is in need of replacement.
  • The filter/respirator assembly weighs only 2,400 g and measures only 240x165x70 mm.
  • The paired welding mask is always self-obscuring with liquid crystals.
  • The SecureAir V9-22 mask all comes in a handy duffel bag.
  • CE certified and complies with EN 12941 standards.
  • Equipped with a 4sensor liquid crystal mask with variable degree of obscuration adjustable on two scales: 5-9 and 9-13 DIN, starting from a state of 3 DIN.
  • Wide field of view measures 100x60 mm.
  • All adjustments (gradation, sensitivity, delay) are possible via a Bluetooth remote control.
  • The lcd filter is digital and boasts True Color technology that allows colors to be distinguished.
  • The headband is lightweight and ergonomic and adjustable in multiple positions, and the filtered air flow is further improved and reaches the mask in a diffuse and directional manner creating optimal anti-fogging.

Technical data

Fan body dimensions (mm): 240 x 165 x 70
Weight (kg): 2.4
Air filter type : TH2 P R SL particle
Air flow rate (lt / min): Vel. 1 170 lt min
Vel. 2 200 lt min
Vel. 3 230 lt min
Noise level (dB): Max 73
Operating temperature (°C): -5°C +55°C
Storage temperature (°C): -10°C +55°C
Battery type : Rechargeable Li-ION 4400mAh
Battery life : Speed 1 8h
Speed 2 6h
Speed 3 4h
Battery charging time (ore): 3.5
Battery life : 500 autonomous refills depending on flow and filter pollution
LCD Display : Air flow level; Battery status; Filter pollution

Dimensions

Documentation

Technical sheet (SecureAir_SP_MASKV9220000000_2024_11_20_en.pdf)
